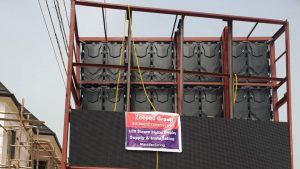

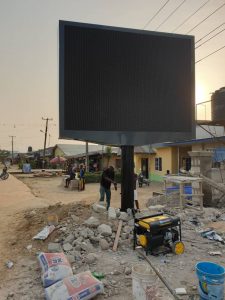

LED SCREEN BILLBOARD CONSTRUCTION
LED display P4 indoor fixed LED screen panel
p6 indoor /outdoor led display screen module

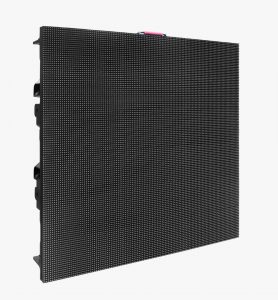

Cabinet size 576*576mm
Cabinet material aluminum cabinet
Cabinet weight 7.3kg+_0.5kg
Cabinet resolution 96:96 dots
Ingress protection Front/Rear IP65/IP54
| Pixel density | 27556 dots/m² |
| Brightness | ≥1300 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 6mm |
| Max.power consumption | 700W/m² |
| Avg.power consumption | 200 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥600Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥50000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage/Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
P10 P8 Full Color Advertising Billboard Panel Smd Outdoor Flexible Led Display Screen
